Vertical foam cutting is essential for many foam workshops. It lets you slice foam blocks into upright sheets and slabs for applications like mattress side panels, furniture back cushions, and packaging dividers. The IF-FZQA Automatic Vertical Foam Cutting Machine automates this process, replacing manual vertical cutting with precise, repeatable machine operation.
A foam conversion plant in Brazil was cutting vertical slabs manually with a handsaw. Output was limited to 15 blocks per shift, accuracy was +-5mm, and operator fatigue was high. After installing the IF-FZQA, output increased to 45 blocks per shift, accuracy improved to +-1mm, and the single operator managed the entire cutting process comfortably. The machine paid for itself in 5 months.
The IF-FZQA is an automatic vertical foam cutting machine designed for medium to high-volume production. The operator places a foam block on the cutting table. The machine automatically clamps the block, positions the cutting blade, and makes the vertical cut at the programmed thickness. The cutting head then returns to its starting position, and the operator removes the cut sheet.
Unlike horizontal cutters that slice blocks into horizontal layers, vertical cutters cut perpendicular to the block length. This makes them ideal for producing panels, slabs, and sheets where the width dimension needs to be precise. The IF-FZQA uses a continuous loop blade driven by servo motors for smooth, accurate cuts across the full block height.

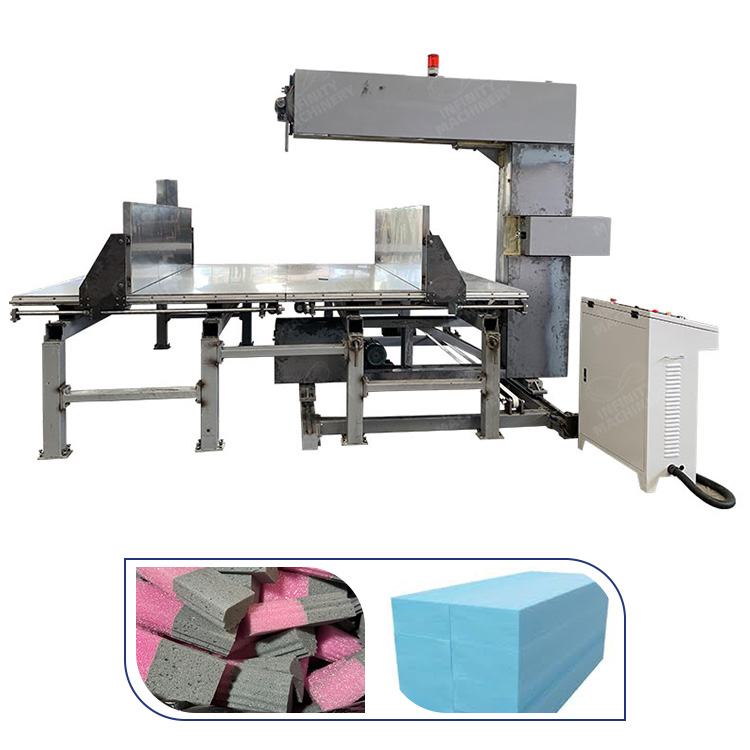

Automatic vertical foam cutter with PLC control. Cuts blocks up to L2000 x W1500 x H1200mm. +-1mm precision. Servo drive.
View Product →| Specification | IF-FZQA |
|---|---|
| Max Foam Block | L2000 x W1500 x H1200 mm |
| Cutting Method | Vertical continuous blade |
| Cutting Accuracy | +-1 mm |
| Cutting Speed | 0-20 m/min |
| Control System | PLC + Digital Display |
| Total Power | 5.5 kW |
| Machine Size | L3500 x W2500 x H2200 mm |
| Density Range | 8-80 kg/m3 |
Many foam workshops focus on horizontal cutting and overlook the value of a dedicated vertical cutter. Here is why adding the IF-FZQA to your lineup makes sense:
Q: "What is the difference between the IF-FZQA and IF-FZQ3?"
A: The IF-FZQ3 is a basic vertical cutter with manual operation. The IF-FZQA is fully automatic with PLC control, auto-clamping, and servo drive for higher precision and throughput.
Q: "Can it cut different foam densities?"
A: Yes, the IF-FZQA handles foam densities from 8 to 80 kg/m3, including PU foam, memory foam, rebonded foam, EVA, and PE foam.
Q: "How long does it take to change thickness settings?"
A: The PLC stores up to 20 cutting programs. Changing thickness takes about 10 seconds using the digital control panel.
Q: "What maintenance does the IF-FZQA require?"
A: Daily cleaning of the blade and guides, weekly lubrication of moving parts, monthly inspection of blade tension, and blade replacement every 200-400 hours.
Complete your foam cutting line with these complementary machines:
Tell us your block dimensions and daily volume. We will configure the IF-FZQA for your production needs.
