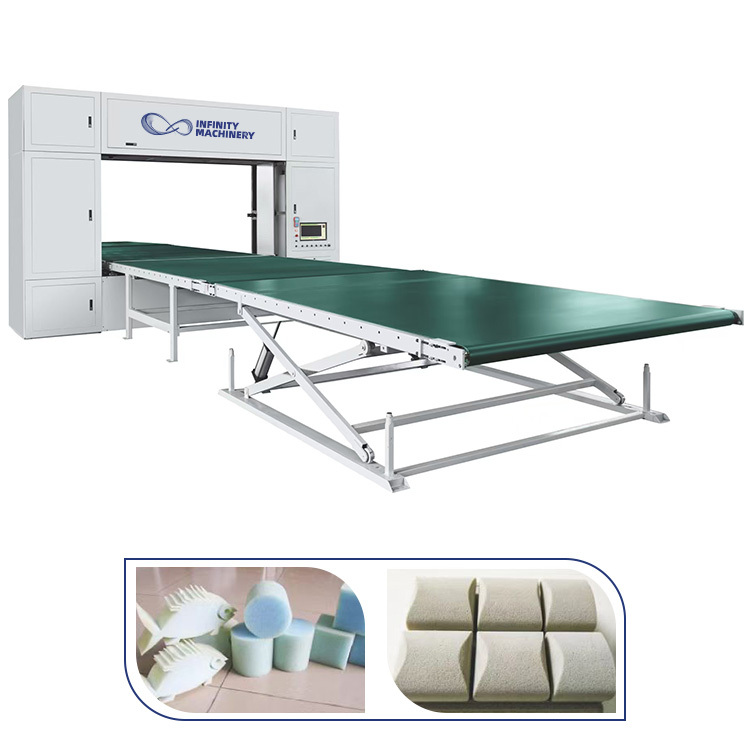

IF-CNCVH Double Blade CNC Foam Cutter: Cut Shapes Twice as Fast

Conventional CNC foam cutters use a single knife to cut foam shapes. They are already more precise than manual cutting, but speed is limited by the single blade. The IF-CNCVH Double Blade CNC Foam Cutter changes that: two independently controlled blades cut simultaneously. The result is up to 2x faster cycle times on complex parts, with no sacrifice in precision.

A foam packaging plant in the US was running two single-blade CNC cutters 16 hours a day to keep up with custom packaging orders. They replaced both with one IF-CNCVH double blade machine. Output per shift increased by 80%, labor dropped from four operators to two, and the single machine footprint was smaller than the two originals. The machine paid for itself in 7 months.

• Dual independent cutting heads: Two blades cut simultaneously. Each head has its own servo drive and control, allowing independent or synchronized operation. Cut two identical parts at once, or two different parts from the same block.
• PC-based CNC control: The intuitive PC control system accepts standard CAD file formats (DXF, DWG, AI, PDF, PLT). Import your design, set parameters, and start cutting. No specialized programming knowledge required.
• Continuous blade for clean cuts: The IF-CNCVH uses a continuous loop blade (like a bandsaw) rather than a reciprocating knife. This produces cleaner cuts with less dust and works across a wide range of foam densities.
• Mirror and duplicate modes: In mirror mode, the second head mirrors the first heads path, ideal for cutting left and right pairs simultaneously. In duplicate mode, both heads cut identical paths spaced across the table.
• Servo-driven precision: High-precision servo motors drive the X, Y, and C axes, delivering +-0.5mm cutting accuracy across the full working area.

• Mattress toppers and layers: Cut two identical mattress toppers simultaneously from a single foam block. Perfect for producing mirror-image mattress layers for queen and king beds.
• Custom packaging inserts: Foam packaging manufacturers running custom inserts for different products can cut two different patterns at once with each head programmed independently.
• Furniture cushions: Cut sofa and chair cushion sets where left and right cushions are mirror images. The IF-CNCVH cuts both simultaneously in mirror mode.
• Automotive foam components: Vehicle seating foam sets often have matching left and right parts. The dual blade cuts both in a single cycle, doubling throughput.
• Prototype runs: For short production runs of custom foam shapes, the IF-CNCVH can cut two prototype variations side by side for comparison.

Q: "Can the two blades cut different shapes?"
A: Yes. Each head is independently controlled. You can cut two totally different shapes on the same foam block, as long as they fit within the table area.

Q: "What file formats does the CNC accept?"
A: The PC-based controller accepts DXF, DWG, AI, PDF, and PLT files. Most CAD and vector design software can export these formats.

Q: "What foam densities can it handle?"
A: The IF-CNCVH handles foam densities from 8 to 80 kg/m3, including polyurethane, rebonded, memory foam, polyethylene, and EVA foam.

Q: "Is training required to operate the machine?"
A: Basic computer skills are sufficient. The CNC software is intuitive and designed for shop-floor operators. Most operators are productive within a day of training.

Ready to Double Your CNC Foam Cutting Output?

Tell us your part dimensions, volumes, and current cycle times. We will show you how the IF-CNCVH can cut your production time in half.
