In high-volume foam production, throughput is everything. The IF-FYP6/7/10 Carrousel Splitting Foam Cutting Machine changes the game: instead of cutting one block at a time, it lets you load multiple blocks on a rotating carrousel table and split them all in a single cycle. The table rotates, bringing each block past the cutting blade in sequence. One operator, multiple blocks, one continuous process.
A mattress factory in Nigeria was running three standard horizontal cutters with six operators to keep up with demand. They replaced all three with one IF-FYP7 carrousel cutter. Output increased from 80 to 140 blocks per shift, labor dropped from six operators to two, and cutting accuracy improved from +-2mm to +-0.1mm. The single machine covered the output of three.
The carrousel design is elegantly simple. A large circular table rotates continuously. Operators load foam blocks onto the table at the loading position. As the table rotates, each block passes under the cutting blade, which slices it horizontally at the programmed thickness. The cut block continues rotating and returns to the unloading position where it is removed and replaced with a new block.
The key advantage: while one block is being cut, other blocks are being loaded and unloaded at different positions around the table. There is no downtime between cuts. The blade runs continuously, and the table rotates at a steady speed. This makes the carrousel cutter ideal for high-volume, same-thickness production where you need maximum throughput per operator.

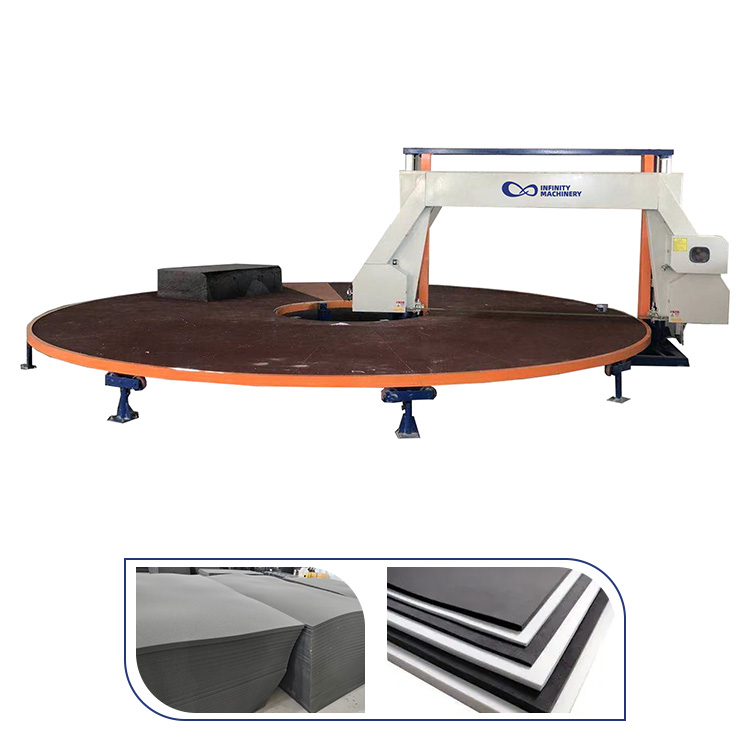

Rotating table cutter for high-volume foam splitting. 6m, 7m, or 10.5m table. Cuts 2-150mm thickness. +-0.1mm precision.
View Product →| Specification | IF-FYP6 | IF-FYP7 | IF-FYP10 |
|---|---|---|---|
| Table Diameter | 6 m | 7 m | 10.5 m |
| Block Capacity | 4 blocks | 5 blocks | 8 blocks |
| Max Block Size | L2000 x W1500 x H1200 mm | ||
| Cutting Thickness | 2-150 mm | ||
| Table Speed | 0-3.5 r/min | 0-3.5 r/min | 0-2.5 r/min |
| Blade Length | 8940 mm | 10000 mm | 10380 mm |
| Total Power | 8.92 kW | 8.92 kW | 10.52 kW |
| Cutting Accuracy | +-0.1 mm | ||
| Cutting Speed | Up to 15 m/min | ||
| Machine Size | L7m x W6.5m x H2.5m | L7.5m x W7m x H2.5m | L11.5m x W11m x H2.5m |
| Metric | Standard Horizontal Cutter | IF-FYP7 Carrousel |
|---|---|---|
| Blocks per shift | 30-50 | 120-180 |
| Operators required | 2-3 | 1-2 |
| Cutting accuracy | +-1-2mm | +-0.1mm |
| Floor space | ~30 m2 | ~50 m2 |
With 3-4x the throughput of a standard cutter and half the labor, the IF-FYP7 typically achieves payback in 6-12 months at high-volume production.
Q: "What foam densities can the carrousel cutter handle?"
A: The standard configuration handles foam densities from 8 to 80 kg/m3. With the optional vacuum table, it handles soft foams down to 4 kg/m3.
Q: "How many operators does the carrousel machine need?"
A: One to two operators. One operator loads and unloads blocks while the other manages the control system and block preparation. Many factories run it with a single experienced operator who manages 120+ blocks per shift comfortably.
Q: "Can I cut different thicknesses on the same block?"
A: The carrousel is optimized for same-thickness cutting across all blocks. For multiple thicknesses, you need to complete one thickness setting, then change the thickness and run again. The digital control makes thickness changes quick.
Q: "What maintenance does the carrousel table need?"
A: The rotating mechanism requires periodic lubrication of the center bearing and drive system. Daily cleaning of the table surface and weekly inspection of the blade guides are recommended. The blade should be checked for tension daily and replaced every 200-400 hours of operation depending on foam density and volume of production.
Q: "Can I use the carrousel for cutting foam profiles or just splitting?"
A: The IF-FYP series is designed primarily for horizontal splitting (cutting blocks into sheets of equal thickness). For profile cutting or contour cutting, we recommend the IF-CNCV or IF-YX01 machines which are designed specifically for complex shapes and three-dimensional cutting.
