You have foam blocks that need to become specific shapes — contoured cushions, shaped packaging inserts, or foam components with stepped profiles. Using a standard straight cutter means wasting foam and spending hours on manual trimming. Hand-cutting the profiles is slow and inconsistent.
A foam fabricator in Poland was making contoured seat cushions by stacking thin sheets and trimming the profile by hand. Each cushion took 35 minutes and had visible variations between pieces. They added the IF-YX01 Profile Sponge Cutting Machine and reduced production time to 8 minutes per cushion with perfect consistency. Their customer rejection rate dropped from 12% to 0.5%.
A profile foam cutting machine is designed to cut foam blocks into contoured shapes by compressing the sponge with pressure rollers while a blade cuts the profile. Unlike standard cutting machines that only make straight cuts or vertical slices, a profile cutter allows you to create variable-depth contours on the foam surface.

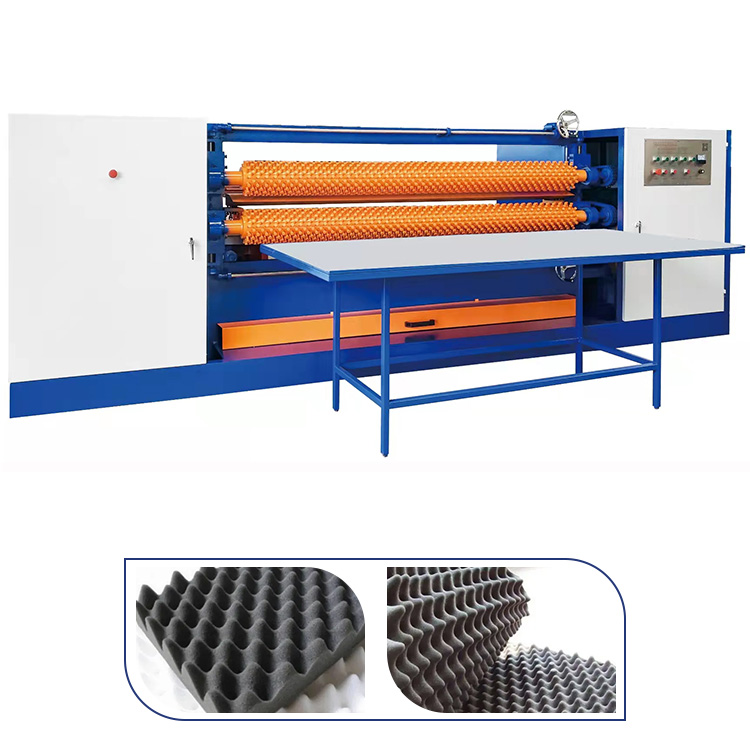

The IF-YX01/YX02 Profile Sponge Cutting Machine transforms sponge materials into a variety of shapes with precision. It uses pressure rollers to compress the sponge, allowing for customization of the cutting depth through manual adjustment. This makes it ideal for shaping foam blocks into furniture cushions, mattress components, and specialty foam products.
Precision profile cutting with pressure roller compression. Manual depth adjustment for custom contour shapes in any foam block.
View Product →| Method | Setup Time | Precision | Waste | Best For |
|---|---|---|---|---|
| Hand cutting with knife | 10-20 min | Low (±5mm) | 10-18% | One-off prototypes |
| Die cutting | 1-3 days (die making) | High (±0.5mm) | 3-8% | High-volume standard shapes |
| CNC contour cutting (IF-CNCV) | 15-30 min (CAD file) | High (±0.5mm) | 3-5% | Complex 3D contours |
| IF-YX01 profile cutting | 2-5 min (manual adj.) | Good (±1-2mm) | 5-8% | Medium-volume profiling |
The IF-YX01 is part of a complete foam cutting ecosystem. For shops that need both profile cutting and precision straight cutting, pairing it with other Infinity Foam Machinery cutters creates a versatile production line:
While CNC contour cutters like the IF-CNCV offer automated cutting for complex 3D shapes, the IF-YX01 has distinct advantages for certain applications:
Q: "What foam types can the IF-YX01 cut?"
A: The machine handles polyurethane foam, EVA, EPE, PE foam, and rebonded foam. The pressure roller system adapts to different foam densities from soft (8 kg/m³) to firm (80 kg/m³). Closed-cell foams like EVA and PE work particularly well because they compress uniformly under the rollers.
Q: "How deep can the profile cut be?"
A: The cutting depth depends on the foam density and the pressure roller adjustment. Typical profile depths range from 5mm to 100mm. Deeper cuts may require multiple passes. The manual adjustment system allows fine-tuning in small increments for precise depth control.
Q: "Can the IF-YX01 cut multiple blocks at once?"
A: Yes. The machine can stack multiple foam sheets or blocks and cut them simultaneously, as long as the total stack height is within the machine's capacity. This makes it efficient for batch production runs of identical profiles.
Q: "Is the IF-YX01 difficult to operate?"
A: Not at all. The manual adjustment system is intuitive and straightforward. Most operators with basic mechanical skills are productive after 2-3 hours of training. No computer programming skills or CAD knowledge are needed, making it accessible to any workshop.
Q: "What maintenance does the IF-YX01 require?"
A: Routine maintenance is minimal. Keep the blade sharp and properly tensioned. Lubricate moving parts monthly. Clean the pressure rollers regularly to prevent foam residue buildup. With proper care, the machine provides years of reliable service.
The key innovation of the IF-YX01 is its pressure roller system. This system compresses the foam block at the point of cutting, creating a firm surface that the blade can cut through cleanly. The compression also prevents the foam from tearing or deforming during the cut, which is a common problem when cutting soft foam with a standard blade.
The pressure is adjustable via a manual control, allowing the operator to dial in the optimal compression for different foam densities. Firmer foams require less compression, while softer foams need more to prevent tearing. Once the pressure is set, the operator adjusts the cutting depth to create the desired profile contour.
This combination of compressed cutting and depth adjustment gives the IF-YX01 its versatility. Whether you are cutting a simple tapered edge on a furniture cushion or a complex multi-level profile for a mattress component, the pressure roller system delivers clean, consistent results every time.
Building a complete foam profiling capability means choosing the right combination of machines for your production needs. Here is a recommended setup for different workshop sizes:
| Workshop Size | Recommended Setup | Typical Investment |
|---|---|---|
| Small / Startup | IF-YX01 only | Lowest cost |
| Medium | IF-YX01 + IF-FZQ3 | Moderate |
| Large / High-Volume | IF-YX01 + IF-CNCV + IF-FZQ3 | Higher investment |
Many workshops start with the IF-YX01 for its low entry cost and quick payback, then add the IF-FZQ3 for vertical cutting and the IF-CNCV for complex CNC contour work as their business grows. This modular approach allows you to scale your foam profiling capacity without replacing equipment.
Tell us what shapes you need to cut and your production volume. We will recommend the right IF-YX01 configuration for your workshop.
