You run a mattress factory or foam workshop, and you are buying foam blocks from a supplier. Every month, you pay a premium for pre-made foam — and you have no control over density, hardness, or quality. When a customer needs a specific foam type, you check if your supplier stocks it. If not, you lose the sale.

The solution is not a different supplier. It is producing your own foam. With the IF-FF4 Horizontal Automatic Continuous Foam Foaming Plant, you can produce foam blocks in-house at a fraction of the supplier price, with full control over density, hardness, and formulation.

From Supplier-Dependent to Self-Sufficient: The IF-FF4 Advantage

The IF-FF4 Horizontal Automatic Continuous Foam Foaming Plant is a complete foaming production line that produces high-quality polyurethane foam blocks continuously. It supports a wide density range from 4 to 180 kg/m³, covering applications from ultra-soft pillow foam to high-density automotive and industrial foam.

Here is the cost comparison that matters:

Metric	Buying from Supplier	Producing In-House (IF-FF4)
Cost per m³ (20 kg/m³ foam)	$180-250	$60-85
Density control	Limited to supplier catalog	4-180 kg/m³ adjustable
Lead time	1-4 weeks	24-48 hours
Minimum order	Typically 50-100 blocks	As needed
Annual spend (500 m³/yr)	$90,000-125,000	$30,000-42,500

A mattress factory in Egypt was spending $108,000 per year on pre-made foam blocks. After installing the IF-FF4, their raw material cost dropped to $36,000/year — saving $72,000 annually. The machine paid for itself in 14 months.

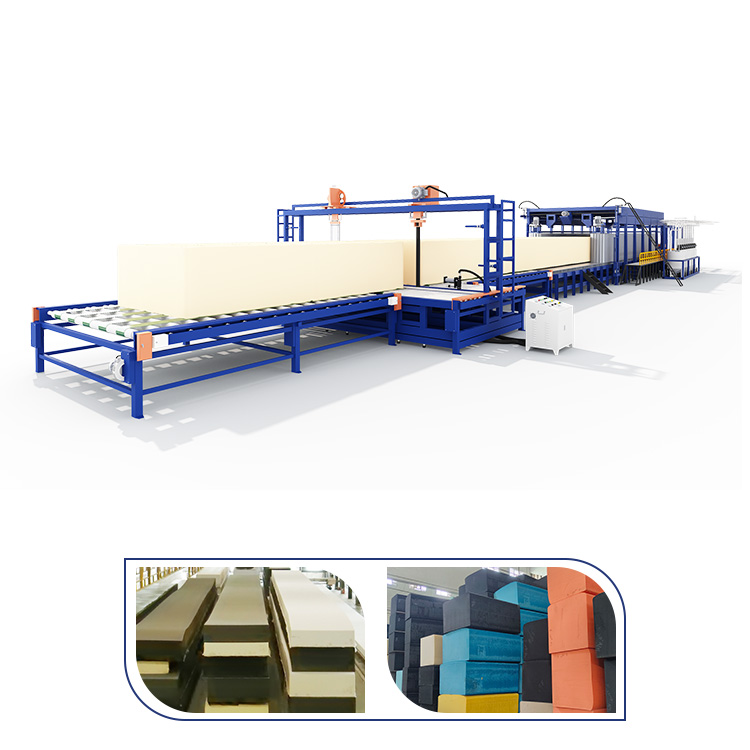

IF-FF4 Continuous Foam Foaming Plant

Horizontal automatic continuous foaming plant. Density range 4-180 kg/m³. Produces blocks for furniture, bedding, packaging, automotive, and more.

View Product →

Applications Across Industries

The IF-FF4 covers a remarkable density range from 4 to 180 kg/m³. Here is what you can produce at different density levels:

Density Range	Applications	Typical Customers
4-10 kg/m³	Ultra-soft pillow foam, acoustical foam, filter foam	Bedding, audio, filtration
15-30 kg/m³	Mattress cores, furniture cushions, packaging foam	Mattress factories, furniture
35-60 kg/m³	High-resilience foam, automotive seating, carpet underlay	Automotive, flooring
80-180 kg/m³	Industrial foam, gasket materials, bra cup foam, specialty	Industrial, apparel, construction

IF-FF3: The Box Foaming Alternative for Lower Volumes

If your production volume does not yet justify a continuous foaming line, or if you need the flexibility to produce multiple small batches with different formulations, the IF-FF3 Automatic Box Foaming Machine is an excellent alternative. It produces individual foam blocks in a box mold, with easy formulation changes between batches.

The IF-FF3 stores up to 10 different formulations and supports foam densities of 8-80 kg/m³. Many of our customers start with the IF-FF3 for lower-volume production and add the IF-FF4 continuous line as their business grows. The two machines complement each other perfectly — the IF-FF3 for specialty batches and the IF-FF4 for high-volume standard production.

Key Features of the IF-FF4 Continuous Foaming Plant

Horizontal continuous design — Produces a continuous foam log that is cut into blocks, maximizing throughput and minimizing waste.
Wide density range: 4-180 kg/m³ — From ultra-light acoustic foam to high-density industrial foam, all on one machine.
Precision metering system — High-accuracy pumps ensure consistent chemical ratios for uniform foam quality block after block.
Adjustable conveyor speed — Controls the foam rise profile and block height. Faster speeds for lower-density foam, slower for higher-density.
Automatic temperature control — Maintains optimal reaction temperature for consistent foam cell structure across different formulations.
Foaming paper feed system — Continuous paper feed prevents foam from sticking to the conveyor and ensures clean block release.

Related Foaming Equipment

Beyond the IF-FF4 continuous line, Infinity Foam Machinery offers a complete range of foaming equipment for different production scales:

IF-FF3 Automatic Box Foaming Machine — Individual box foaming for smaller batches and multiple formulations. Stores up to 10 different recipes. Density range 8-80 kg/m³.
Foam Chemicals and Binder Supplies — Polyurethane chemicals including polyols, isocyanates, catalysts, and surfactants for your foaming line.

How the IF-FF4 Continuous Foaming Line Works

The IF-FF4 is a horizontal continuous foaming plant. Here is how the production process works from start to finish:

Chemical preparation: Polyol, isocyanate, blowing agents, catalysts, and surfactants are precisely metered and mixed in the correct proportions. The IF-FF4 uses a high-precision metering system to ensure consistent formulation every time.
Mixing head: The chemical mixture is fed into a mixing head where all components are blended at high speed. The mixing parameters (speed, temperature, pressure) are controlled to achieve optimal reaction conditions.
Continuous pouring: The mixed chemicals are poured onto a moving conveyor belt lined with foaming paper. The chemical reaction begins immediately, creating a continuous foam block that expands as it moves down the conveyor.
Rising and curing: The foam rises to its full height on the conveyor, which is long enough to allow the initial curing phase. Side conveyor belts control the block width and prevent the foam from sticking.
Cutting to length: At the end of the conveyor, the continuous foam log is cut into individual blocks at your desired length. The blocks are then moved to a curing and storage area for final stabilization.
Quality control: Each block is tested for density, hardness, and cell structure. The IF-FF4's consistent process typically achieves a density variation of less than ±5% across the entire block.

Why In-House Foaming Beats Buying from Suppliers

Manufacturers who switch from buying pre-made foam to producing their own consistently report three major advantages:

Cost savings of 50-65%: The raw material cost for producing foam in-house is roughly one-third to one-half of the supplier price. A factory using 500 m³ of foam per year typically saves $60,000-$80,000 annually.
Complete density control: With the IF-FF4's 4-180 kg/m³ range, you can produce exactly the foam density each product needs. No more compromising with the closest density your supplier offers.
Faster turnaround: Instead of waiting 2-4 weeks for supplier delivery, you can produce foam blocks in 24-48 hours. This allows you to accept rush orders and reduce inventory carrying costs.

Frequently Asked Questions About Continuous Foaming

Q: "How much floor space does the IF-FF4 need?"
A: A complete IF-FF4 continuous foaming line requires approximately 30m x 5m of floor space, including the conveyor, mixing station, chemical storage, and block cutting area. We can customize the layout to fit your available space.

Q: "What foam chemicals do I need to operate the IF-FF4?"
A: You will need polyol, isocyanate (TDI), blowing agents (water and auxiliary), amine and tin catalysts, silicone surfactant, and any special additives like flame retardants or colorants. We can connect you with suppliers or provide chemical recommendations.

Q: "How many operators does the IF-FF4 need?"
A: A typical continuous foaming line runs with 3-4 operators per shift: one chemical mixing operator, one machine operator, and two helpers for block handling and cutting.

Q: "How long does it take to train operators?"
A: Basic operation training takes about 2 weeks. Your chemical mixing operator will need additional training on formulation adjustments, which typically takes 1-2 months to master.

Q: "What is the typical payback period for the IF-FF4?"
A: For a factory using 300-500 m³ of foam per year, the payback period is typically 12-18 months. Higher-volume operations see payback in under 12 months.

Ready to Start Producing Your Own Foam?

Tell us your target foam densities and monthly volume. We will design a foaming line configuration that matches your production needs — with a clear ROI projection.
