When your foam production requires continuous thin sheets from round foam blocks — for mattress layers, footwear insoles, garment padding, or packaging rolls — a standard foam cutting machine cannot deliver the results you need. That is where foam peeling technology comes in.
The IF-FYQ1 Foam Peeling Machine from Infinity Foam Machinery is designed for continuous rotary cutting of round foam blocks. With CNC PLC control and ±0.1mm cutting precision, it peels consistent thin sheets from foam rolls for a wide range of industries.

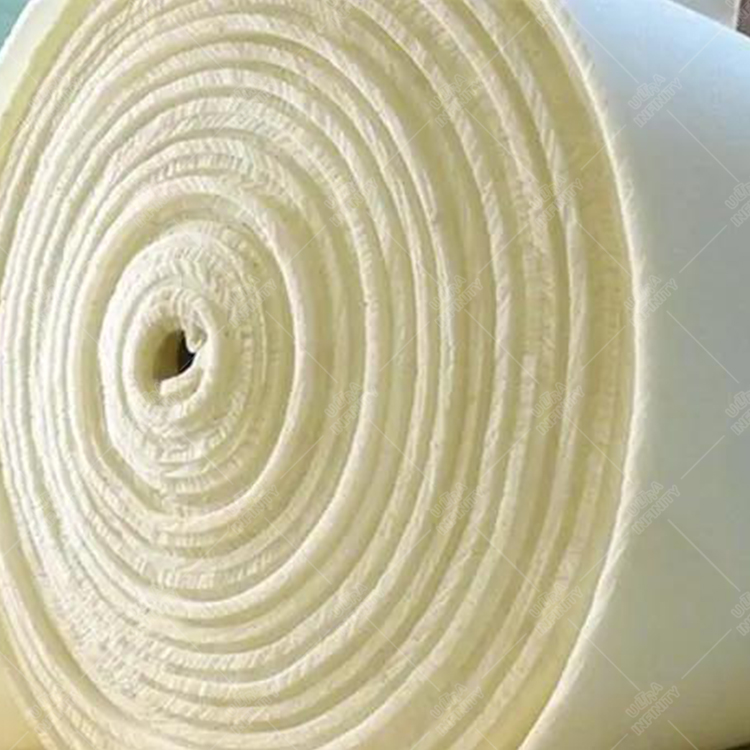

Foam peeling, also known as rotary foam cutting or foam splitting, is a process where a round foam block (log) is rotated against a stationary blade, peeling off a continuous thin sheet — similar to how plywood veneer is produced. Unlike conventional cutting that slices blocks into individual sheets, peeling produces long, uninterrupted foam sheets that can be rolled up for storage or further processing.
The IF-FYQ1 uses a CNC PLC system with touch screen control to precisely manage the rotation speed and cutting thickness. The operator can set parameters digitally, and the machine automatically adjusts the blade position as the foam diameter decreases during peeling — ensuring consistent thickness from the outer layer to the core.
Produces long, uninterrupted foam sheets instead of individual cut pieces for roll-to-roll processing.
Digital control with ±0.1mm accuracy. Touch screen interface for easy parameter adjustment.
Suitable for mattresses, chest circumference padding, shoes, packaging, and garment industries.
Peeling maximizes usable material from each round foam block, reducing waste.
| Specification | Value |
|---|---|
| Max Foam Size | Φ2000 × W2150 mm |
| Cutting Thickness | 1–30 mm (±0.1mm precision) |
| Turning Speed | 0–30 m/min |
| Blade Length | 8940 mm |
| Total Power | 4.67 kW |
| Machine Size | L4600 × W1700 × H2000 mm |
| Control System | CNC PLC with Touch Screen |
Continuous foam sheets for mattress quilting and layering
Bra padding, shoulder pads, and garment foam inserts
Insole foam, shoe lining, and comfort padding materials
Roll foam sheeting for protective packaging applications
All machines meet international safety and quality standards.
Touch screen interface with digital precision for consistent cutting quality.
Suitable for mattresses, garments, footwear, packaging, and more.
Installation, training, and after-sales support worldwide.
The IF-FYQ1 Foam Peeling Machine offers a unique solution for manufacturers who need continuous thin foam sheets from round blocks. With CNC PLC precision, wide thickness range, and versatile applications across multiple industries, it is a valuable addition to any foam processing line.
Contact Infinity Foam Machinery today for more information or a customized quote.
Get a free quote for the IF-FYQ1 Foam Peeling Machine tailored to your production.
