In foam processing, horizontal cutting is one of the most fundamental operations — slicing large foam blocks into uniform sheets for mattress layers, packaging cushions, upholstery padding, and insulation panels. The quality of these slices directly affects your product consistency and material yield.
Infinity Foam Machinery offers two reliable horizontal cutting solutions: the IF-FPQ1-1650/2150 Horizontal Foam Cutting Machine for standard sheet production, and the IF-LT1650/2450 Long Track Foam Cutting Machine for extra-long foam blocks. Both feature fully automatic digital control for precise, consistent slicing.
Horizontal foam cutting machines slice foam blocks parallel to the worktable surface, producing sheets of uniform thickness. Unlike vertical cutters that cut perpendicular to the table, horizontal cutters are ideal for producing large quantities of flat sheets from tall foam buns. The foam block is fed through a continuous band blade while the worktable moves at a digitally controlled speed, ensuring each slice has precisely the same thickness.
Both the IF-FPQ1 and IF-LT series use fully automatic digital control systems. Operators simply set the desired thickness and foam density on the control box, and the worktable automatically runs the cutting cycle. This eliminates the need for manual measurement and reduces human error.
Digital control ensures every sheet is exactly the same thickness for consistent product quality.
Choose from 1650mm or 2150mm cutting width (IF-FPQ1) and 1650mm or 2450mm (IF-LT).
Set parameters once and let the machine run the cutting cycle automatically.
Adjust cutting parameters to match different foam densities for best cutting results.

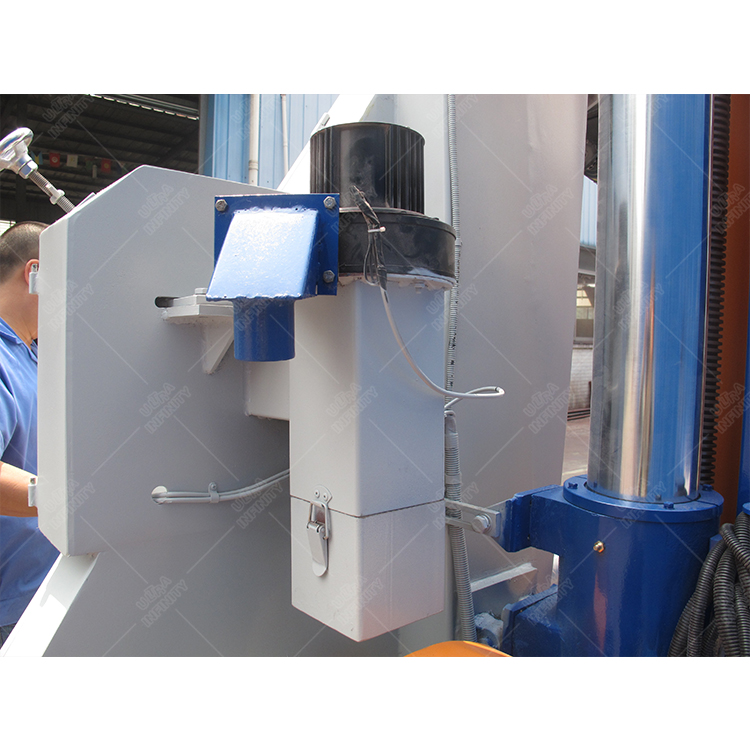

The IF-FPQ1-1650/2150 is a horizontal foam contour cutting machine designed for slicing block foam into uniform sheets. It features a fully automatic digital control system — operators simply set the required cutting thickness and foam density on the control box, and the worktable automatically runs the cutting cycle.

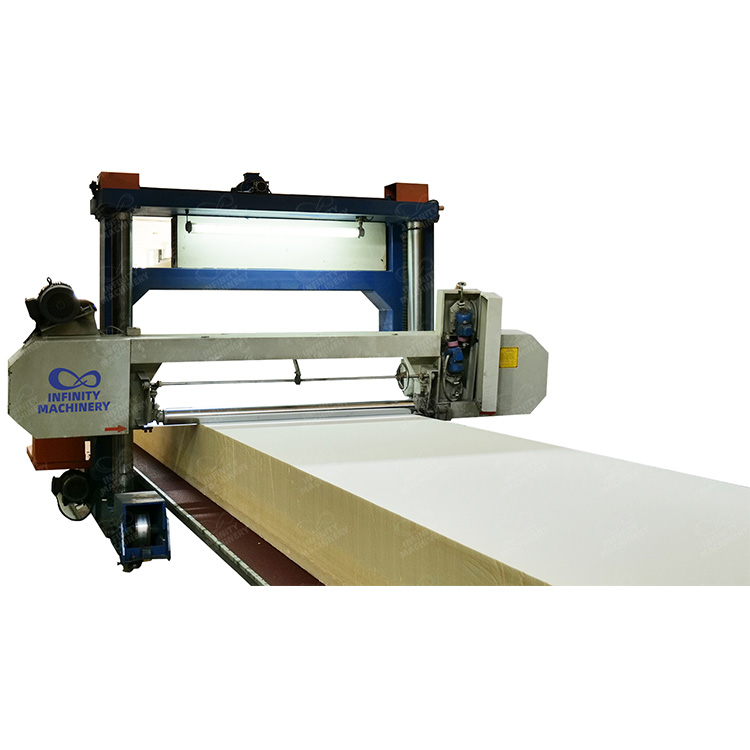

The IF-LT1650/2450 is specifically designed for cutting extra-long block foam into slices. Its extended track system accommodates longer foam buns, making it the ideal choice for factories producing long continuous sheets for mattress layers, carpet underlay, or insulation rolls.
| Factor | Horizontal Cutter | Vertical Cutter |
|---|---|---|
| Cut Direction | Parallel to table surface | Perpendicular to table surface |
| Best For | Flat sheets, long blocks | Profiling, contour cutting |
| Max Width | Up to 2450mm | Up to 2440mm |
| Common Output | Mattress layers, insulation sheets | Contoured toppers, shaped components |
Consistent foam sheets for mattress cores and toppers
Protective foam sheets and cushioning inserts
Padding sheets for sofas, chairs, and furniture
Thermal and acoustic insulation foam panels
All machines meet international safety and quality standards.
Each model offers 2 width options to match your specific block dimensions.
Easy-to-use control box eliminates manual measurement and reduces operator error.
Worldwide installation, training, and after-sales support for all equipment.
Infinity Foam Machinery also offers a complete range of complementary foam processing equipment: vertical foam cutters, carrousel splitting machines, foam peeling machines, and foam crushers. From foaming to cutting to recycling, we provide the entire line.
Horizontal foam cutting machines are essential tools for any foam processing facility. Whether you need the versatile IF-FPQ1 for standard sheet production or the extended-track IF-LT for long block slicing, Infinity Foam Machinery delivers the precision, reliability, and support you need.
